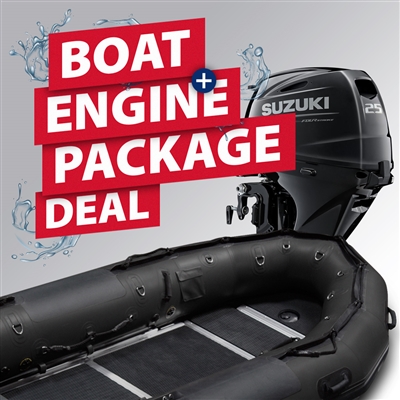

INMAR 430-MIL-HD-S (14' 0") Military Series Inflatable Boat + DF25AS Motor
INMAR, 430-MIL, 14' 0", military, patrol, Inflatable, Boat, outboard, package

Alternative Views:


M.S.R.P. $7,546.95


Product Code: 430-MIL-HD-S-DF25AS
Qty:

Description

BOAT
Specifications:

  • Length 14' 0"
  • Beam 6' 5"
  • Weight w/ floor: 285 lbs.
  • Weight capacity: 8 persons / 2,395 lbs.
  • Max HP / Weight: 40 HP / 245 lbs / Short shaft (15")
  • Recommended HP: 30 HP
  • Tube diameter 20" (Separate air chambers 5 + 1)
  • Fabric: Mehler
  • Seams: RF welded / temperature resistance -30 °C / +70 °C
  • Factory warranty: 3 years recreational / 2 year commercial
  • Performance Tubes - Speed & stability (Optional)
  • Chambers 5 - Inflation and over inflation (One per chamber)
  • Self-bailers (1) *optional High flow scupper can be added


Standard Features:

  • Non-skid aluminum floor with anodized aluminum stringers
  • Fiberglass transom
  • Transom splash guards
  • Aluminum engine mounting plate
  • Reinforcement on tube transom attachments
  • Standard pop-up self-bailers (internal release)
  • All around rub strake, flat profile, black
  • Rubbing strakes for beaching on keel and tubes
  • 8 carry handles, soft handle neoprene covered nylon
  • Bow handle (Stainless)
  • Exterior/Interior lifelines (Peripheral)
  • 11 Interior tie down D-rings (Stainless steel)
  • 2 large tow rings on bow (Stainless steel)
  • 4 large tow rings on rear tubes(Stainless steel)
  • Foot pump with hose & gauge (1) included
  • Repair kit (1) included
  • Storage bags, floor (1) hull (1)
  • Paddle set (Alum. shaft, plastic blade)

OUTBOARD
Specifications:

  • Horsepower: 25 HP
  • Shaft Length: 15" (Short)
  • Drive Type: Tiller Handle
  • Starting: Manual Start
  • Gears: F - N - R
  • Weight: 136 lbs
  • Manual Tilt
  • Propeller included: Yes
  • Control box included: No
  • Remote fuel tank: Yes
  • 3 Year Warranty


Technical Specs

  • Model Number: DF25AS
  • Horsepower: 25
  • Configuration: Manual
  • Control type: Tiller handle
  • Shaft Length (Inches): 15"
  • Weight (Lbs): 136 lbs
  • Cylinders: 2
  • Starting System: Manual Start
  • Oil Tank Capacity: 1.06 qt. (1.0 lit.)
  • Alternator: E/12V12A
  • Trim Type: Manual - 5 Positions
  • Gear Ratio: 2.08
